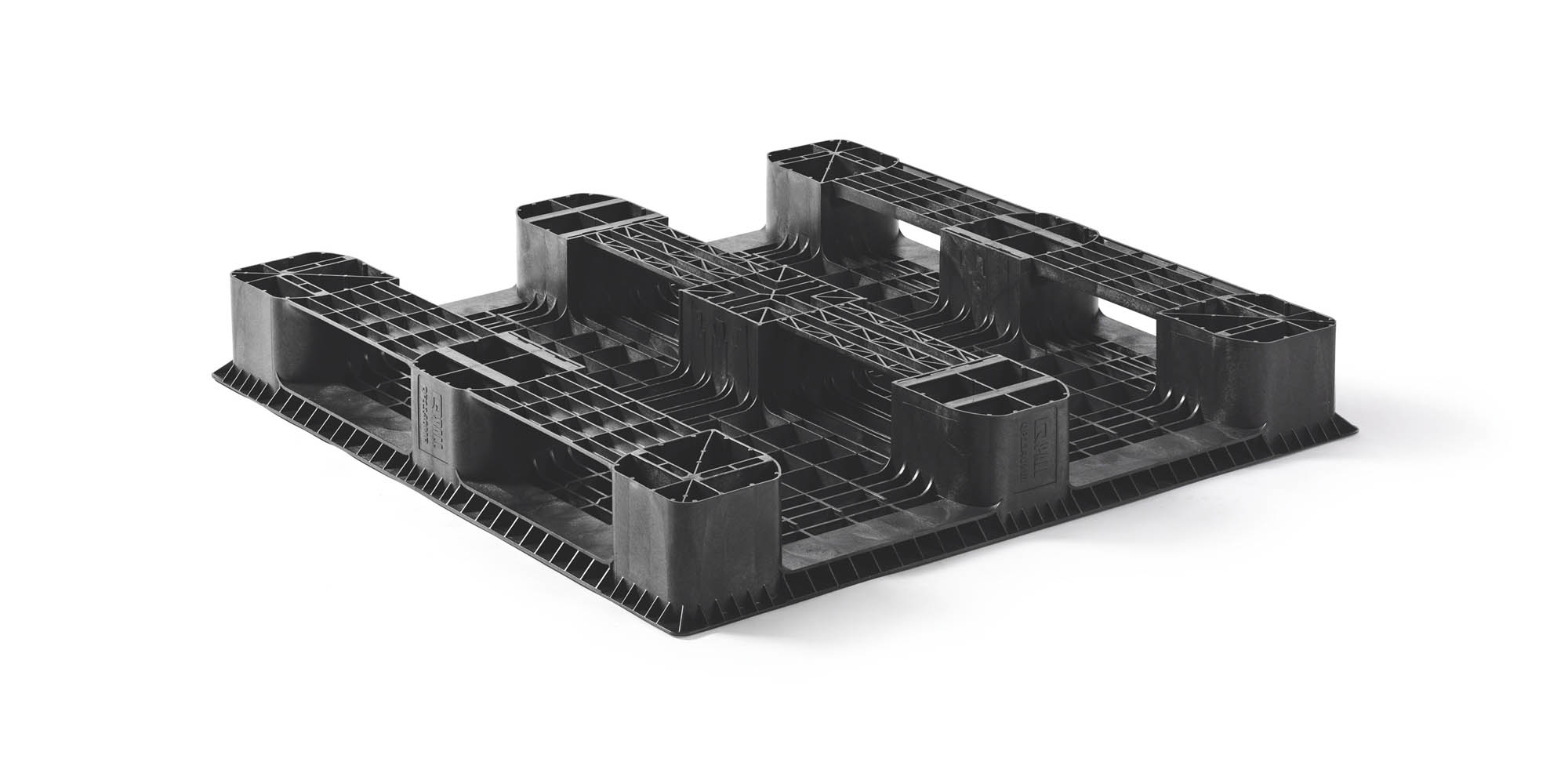

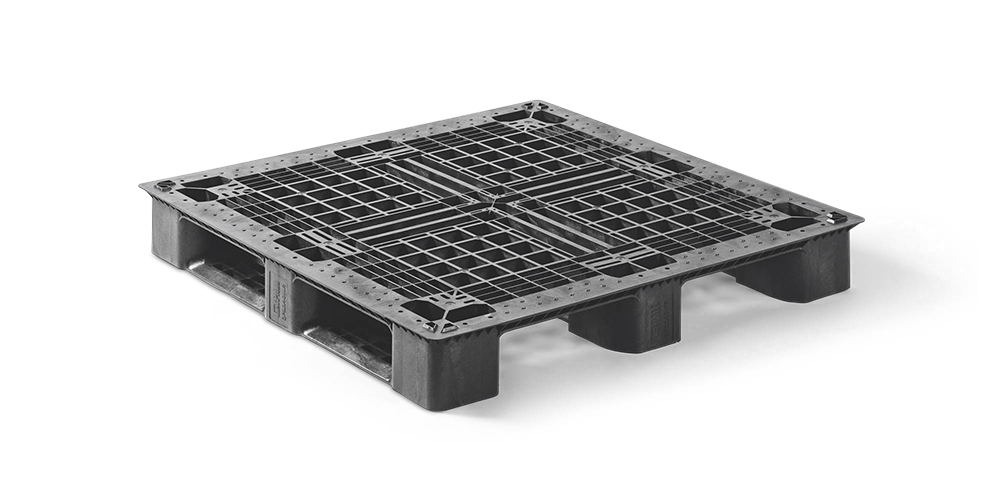

Plastic pallet 1140 x 1140 open deck 3 runners medium
Article number
QP1140MB3R-PAS
Properties
General
| Dimensions (mm): | 1140x1140 |
| Length (mm) | 1140 |
| Width (mm) | 1140 |
| Height (mm): | 150 |
| Weight (kg): | 13.6 |
| Static load (kg): | 7500 |
| Dynamic load (kg): | 1375 |
| Load in rack (kg): | 300 |
| Bottom: | 3 runners |
| Upper deck: | open deck |
Dimensions
| A | 180 |
| B | 180 |
| C | 180 |
| D | 280 |
| E | 280 |
| F | 150 |
| G | 180 |
| H | 180 |
| I | 180 |
| J | 280 |
| K | 280 |
| L | 150 |
Files
Drawings
| pallets-v5-1140-pas-3runners-1 |
