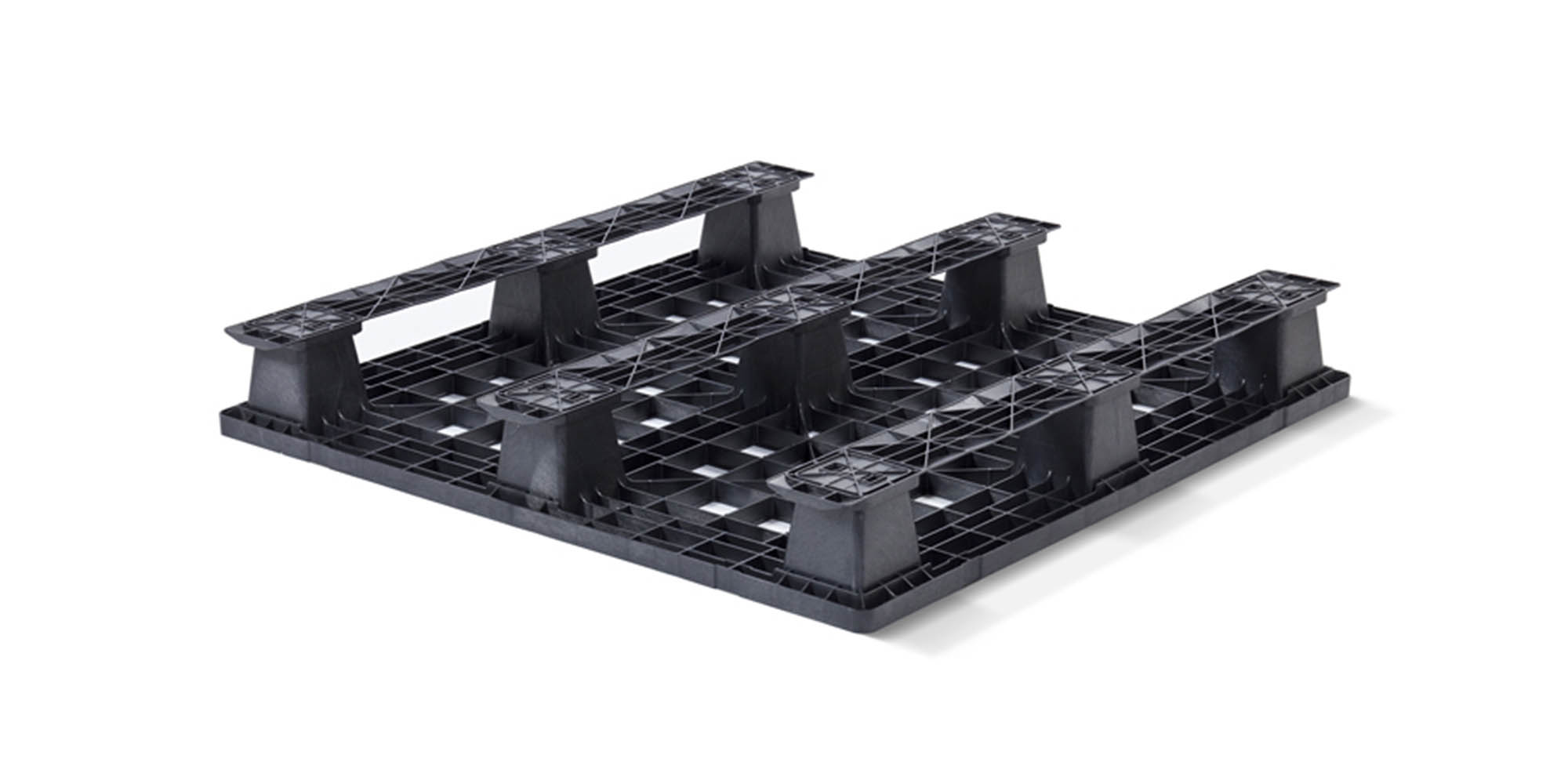

Plastic pallet 1140 x 1140 open deck 3 runners light
Article number
QP1140LB3RR
Properties
General
| Dimensions (mm): | 1140x1140 |
| Length (mm) | 1140 |
| Width (mm) | 1140 |
| Height (mm): | 158 |
| Weight (kg): | 9.66 |
| Static load (kg): | 2500 |
| Dynamic load (kg): | 1000 |
| Load in rack (kg): | 0 |
| Bottom: | 3 runners |
| Upper deck: | open deck |
Dimensions
| A | 97 |
| B | 97 |
| C | 97 |
| D | 381 |
| E | 381 |
| F | 150 |
| G | 97 |
| H | 97 |
| I | 97 |
| J | 381 |
| K | 381 |
| L | 150 |
Files
Drawings
| pallets-v5-3runners-vierkant-light-1 |
