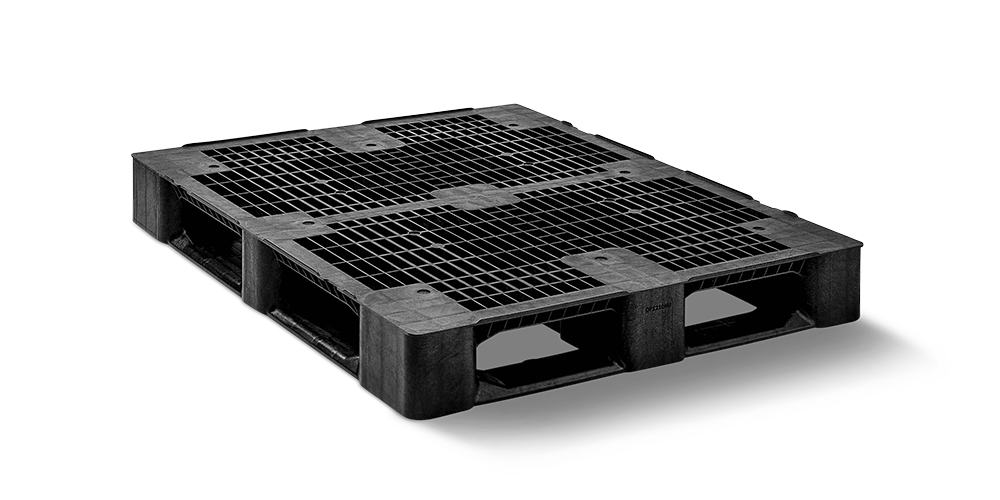

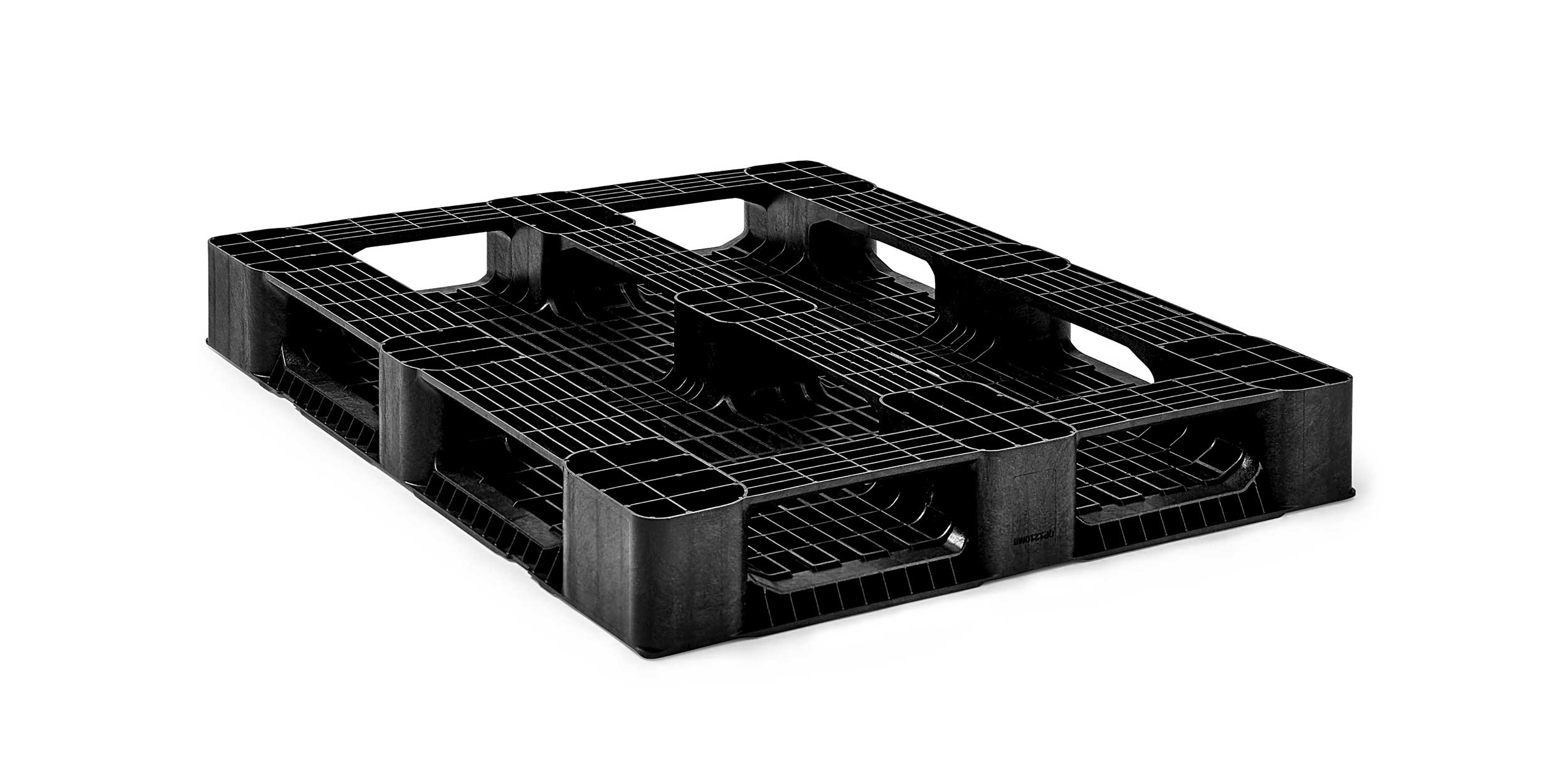

Plastic pallet 1200 x 1000 open deck 5 runners medium
Article number
3.QP1210MB5RR
Properties
General
Dimensions (mm): | 1200x1000 |
Length (mm) | 1200 |
Width (mm) | 1000 |
Height (mm): | 150 |
Weight (kg): | 15.6 |
Static load (kg): | 6000 |
Dynamic load (kg): | 1500 |
Load in rack (kg): | 1000 |
Bottom: | 5 runners |
Upper deck: | open deck |

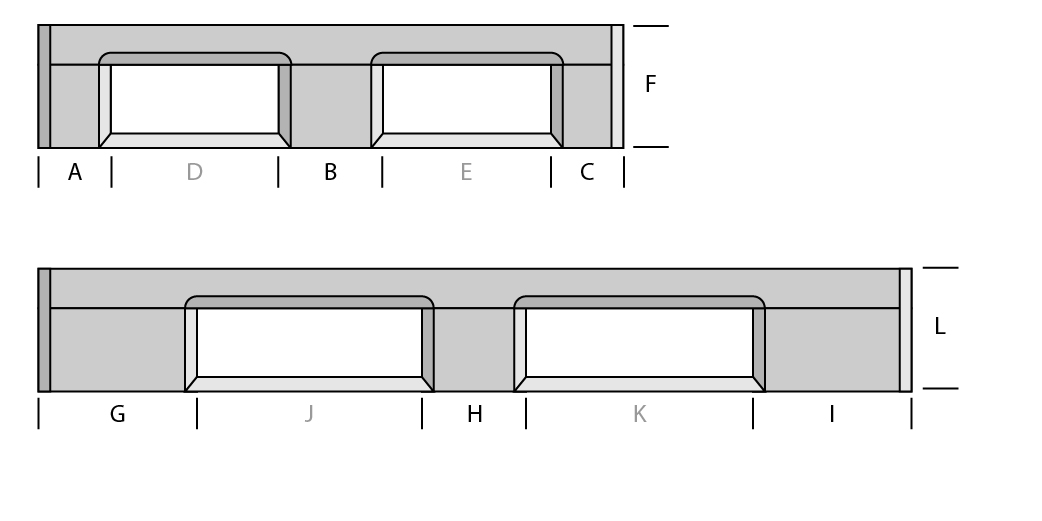

Dimensions
A | 145 |
B | 150 |
C | 145 |
D | 280 |
E | 280 |
F | 150 |
G | 215 |
H | 150 |
I | 215 |
J | 310 |
K | 310 |
L | 150 |
Files
Drawings
pallets-v5-5runner-rechthoek |
